Waterproof IP68 HD Reverse Camera 5 Inch LCD Screen WIFI Rearview
Camera
WIFI Rearview Camera 5 Inch LCD Screen Black Color Metal Material
Waterproof 68
Specification:
Camera
| IP Class(Protection type): | IP68,waterproof |
| Image Sensor: | 1/3” HD CMOS |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| TV System: | NTSC/PAL |
| Resolution: | 550TV Line |
| Minimum Illumination: | 0 Lux[IR ON] |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| View angle: | 110° |
| Power Supply: | DC+9V~+30V(Supporting power line voltage range) |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 27*25*25mm |
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| RX Sensitivity: | -90dBm@10%PER |
| Resolution: | 800(H)x480(V) |
| Brightness: | 500cd/m |
| TV System: | PAL/NTSC |
| Power Supply: | DC+9V~+30V |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 132.5x89.5x22.5mm |
Features:
1. The smallest 2.4G wireless rear view integrated camera in world,
volume is 27*25*25mm
2. Backup camera is designed with IP68 waterproof, Working
temperature: -4°F-149°F, no need to worry driving at raining day
and extreme weather.
3. Easy to install: two way of bracket to install camera, more
convenient
4. Camera come with good low night vision:110 degree horizontal
angle. more safety to drive at darkness and daytime. Illumination
can be as low as 0.1LUX.
5. 5 Inch TFT color screen, brightness: 500cd/m Resolution is
800*480
6. Power on response time is 1.5MS, latency time is 70 ms, video
will be appeared quickly on monitor.
7. Two position to install monitor: located on dashboard or on
windshield. Install separately, when need to connect camera, just
pair the code.
8. Transmissor prow is 16DBM,RX sensitivity is -90DBM
9. Monitor has variety of display way: Mirror, normal image and up,
down, left, right image flip for more safe parking.
What's in the package?
- 1 x 5 TFT monitor
- 1 x backup camera bundled with short bracket
- 1 x additional long bracket for camera(only bracket)
- 1 x monitor mount
- 1 x power adapter for camera
- 1 x car charger for monitor

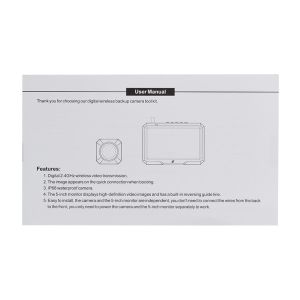

- 1 x color box; 1 x user manual
3M Glue(2pcs), straps(4pcs) & clamps(3pcs)
